IC Audio Mixer amplifier for Public Address, desktop housing, power 120W
Gallery:
Details & Specifications:
 |
 |
Home / Audio Equipment / PA_100V_Amplifiers / IC Audio Mixer amplifier for Public Address, desktop housing, power 120W

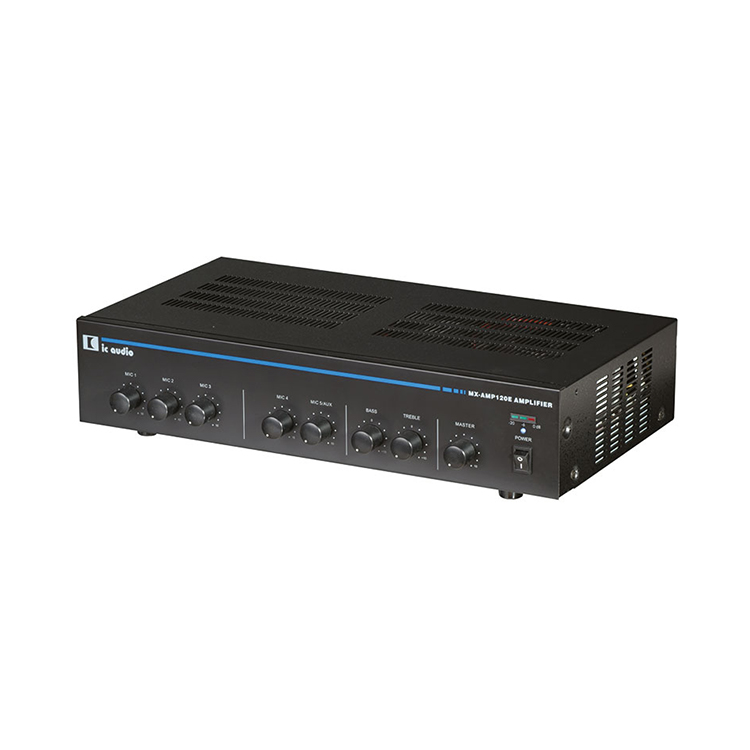

The mixer amplifier MX-AMP 120E offers 5 XLR-Inputs which may be used for connecting signal sources such as Microphones or a CD-Player, e.g. By changing the position of the LINE/MIC-switch on the rear side you select the operation mode of each input. Furthermore you can connect an additional source (Input and Output) by cinch.
Besides the precise volume control for each input channel the MX-AMP 120E offer fine adjustment of bass and treble. To connect the speakers you can choose between the 70 Volt, 100 Volt and 8 Ohm outputs. The blue power-LED and a three digit LED-VUmeter are informing you about the operational readiness and the output level of the 120 Watt powered mixer amplifier
Besides the precise volume control for each input channel the MX-AMP 120E offer fine adjustment of bass and treble. To connect the speakers you can choose between the 70 Volt, 100 Volt and 8 Ohm outputs. The blue power-LED and a three digit LED-VUmeter are informing you about the operational readiness and the output level of the 120 Watt powered mixer amplifier
- 24V emergency power supply
- slim housing (2U)
- slim housing (2U)
| Power (Max/Rated) | 180W/120W |
| Inputs | Mic 1-5: 1mV, 250ohm balanced; AUX: 200mV, 47Kohm unbalanced |
| Frequency response | Mic1~Mic5: 60Hz~15KHz ±3dB AUX/CD: 60Hz~15KHz ±3dB |
| Outputs | Music/Speech: 8ohm, 70V, 100V AUX Out: 350mV, 4.7Kohm |
| THD | Less than 1% at 1 KHz, rated power |
| Mains/Battery Voltage | AC 230V 50/60Hz ± 10% |
| Power consumption | 360W |
| Colour | black |
| Dimensions | 88x430x260 mm |
| Weight (net) | 8,20 kg |
| Packing Unit | 1 |
