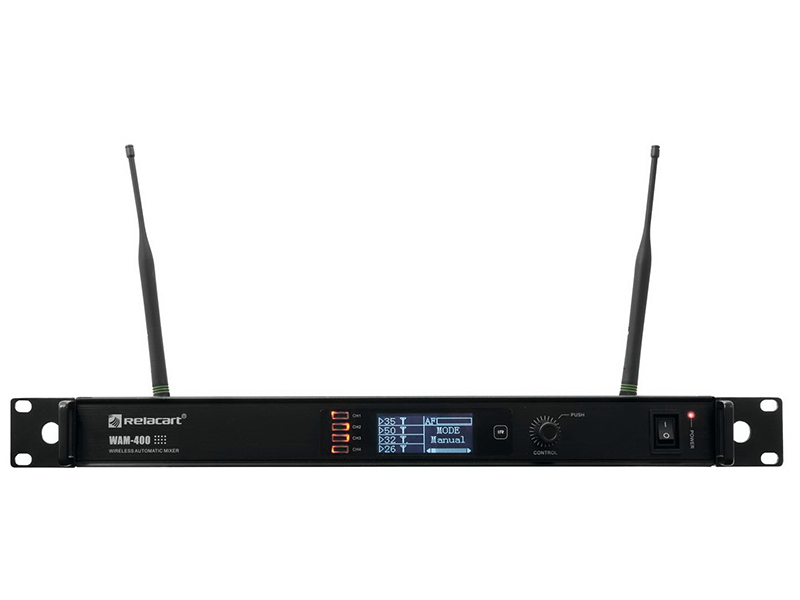

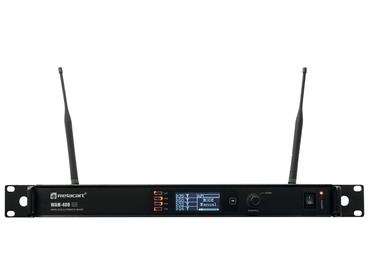

WAM-432 Relacart
Digital & Wireless Automatic Mixer
Digital & Wireless Automatic Mixer
Gallery:
Details & Specifications:
 |
 |
 |
 |
Home / Audio Equipment / Microphones / WAM-432 Digital & Wireless Automatic Mixer
● UHF band 490 – 860MHz wireless automatic mixer for a maximum of four wireless microphones.
● Bright and easy-to-read LCD display shows RF/AF, level and other operation status.
● Automatic gain adjustment by microprocessor control.
● 5-unit daisy chain by accessory link cable to control up to 20 units microphones.
● Select the simultaneous open microphones to 1 unit, 2 units, 3 units or 4 units.
● Set the Priority Microphone.
● Specific circuitry helps control feedback.
● Corresponding various kind of application in conference room due to priority-select function and gate-hold time setting
● Last microphone on selectable for continuous room ambiance.
● Microphone hold time for 0.3s to 1.5s.

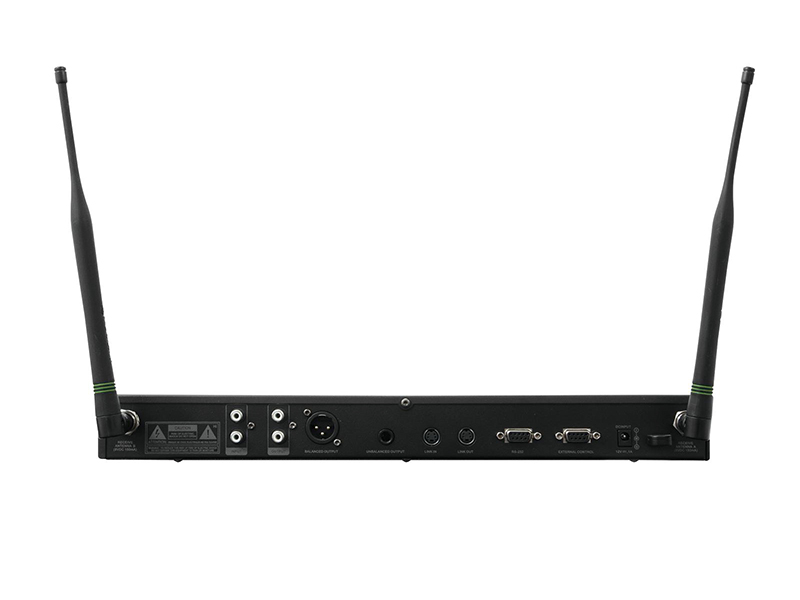

● Several inputs / outputs for audio signals:
-- RCA outputs to realize long distance with low noise transmission.
--RCA input / output for recordings.
-- Unbalance line output (6.3mm jack ).
-- Balanced XLR outputs
● RS-485 interface for external auto video tracking system VTS-1000 or intelligent central control system.

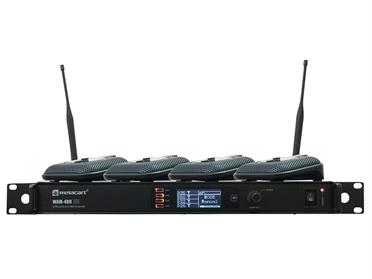

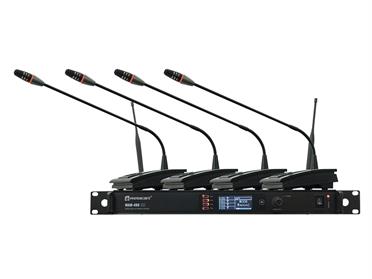

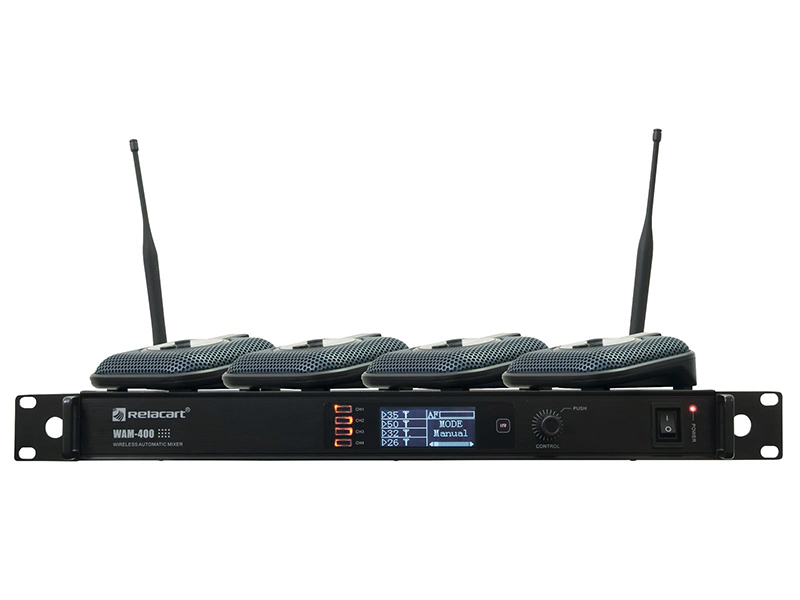

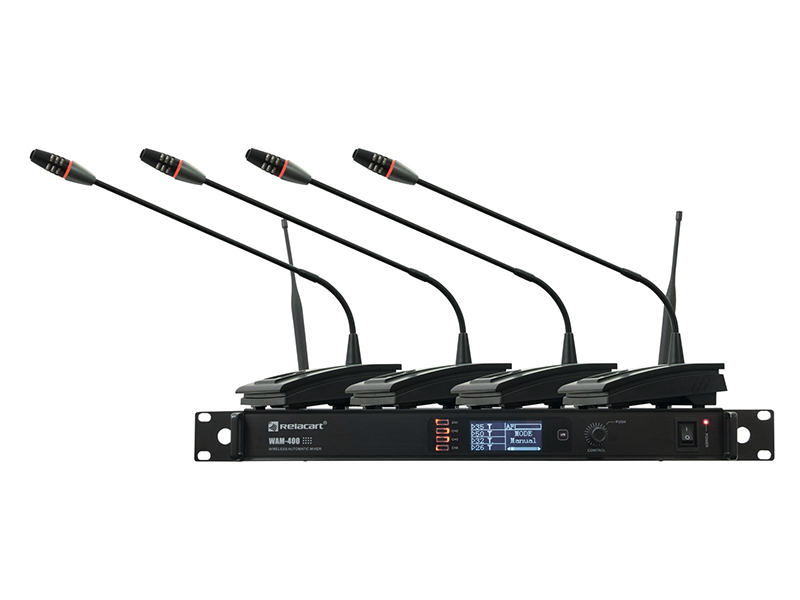

● Cooperates with RELACART wireless boundary microphone UB-200, wireless conferencing microphone UD-200, handheld microphone UH-200 or lapel microphone UT-200.
● The WAM-400 wireless automatic mixer is ideal for meetings, seminars, teleconferencing, house of worship services, broadcast and conference applications.
● Bright and easy-to-read LCD display shows RF/AF, level and other operation status.
● Automatic gain adjustment by microprocessor control.
● 5-unit daisy chain by accessory link cable to control up to 20 units microphones.
● Select the simultaneous open microphones to 1 unit, 2 units, 3 units or 4 units.
● Set the Priority Microphone.
● Specific circuitry helps control feedback.
● Corresponding various kind of application in conference room due to priority-select function and gate-hold time setting
● Last microphone on selectable for continuous room ambiance.
● Microphone hold time for 0.3s to 1.5s.
● Several inputs / outputs for audio signals:
-- RCA outputs to realize long distance with low noise transmission.
--RCA input / output for recordings.
-- Unbalance line output (6.3mm jack ).
-- Balanced XLR outputs
● RS-485 interface for external auto video tracking system VTS-1000 or intelligent central control system.
● Cooperates with RELACART wireless boundary microphone UB-200, wireless conferencing microphone UD-200, handheld microphone UH-200 or lapel microphone UT-200.
● The WAM-400 wireless automatic mixer is ideal for meetings, seminars, teleconferencing, house of worship services, broadcast and conference applications.
| Power supply | DC12V |
| Maximum current | 1A |
| Carrier Frequency Range | 490MHz~860 MHz |
| Band Width | 32 MHz |
| Frequency Stability | ± 10 ppm |
| Modulation Mode | FM |
| Sensitivity | 5dBuV, S/N>60dB at 25 deviation |
| Max.Deviation Range | ±45 KHz |
| Distortion | <0.9% |
| Frequency Response | 65~16KHz |
| S/N | 100dB |
| Audio Output | RCA Jack (X3); 6.3mm Jack (X1); XLR (X1) |
| Audio Input / Output | RCA Jack (X1); 6.3mm Jack (X1) |
| Communication Port | RS-485 (X2) |
| Recording Output Level | LINE Output - 10dBV |
| Balanced Output Level | LINE Output - 10dBV |
| Audio Input Level | LINE Input- 10Dbv |
