178260 PD410A BI-Amplified Active Speaker 10" 800W
Gallery:
Details & Specifications:
Peak Power |
800W |
Power rms |
200W |
Internal Amplifier power |
Class D 175W + Class D 25W |
Impedance |
4 Ohm |
Frequency response |
50Hz - 20kHz |
Crossover frequency |
2.5kHz |
Controller |
DSP 24 Bit / 48kHz |
SPL @ 1W/1m |
92dB |
SPL max |
121dB |
THD |
<0.05% |
Woofer |
10'' |
Driver |
1" Compression Driver |
Voicecoil |
2" |
Dimensions |
330 x 310 x 510mm |
Weight |
10.4kg |
Home / Audio Equipment / Sound Systems / Power Dynamics / 178260 PD410A BI-Amplified Active Speaker 10" 800W
The PD4 series is a high-end speaker with 2 amplifiers for great performance. The low-frequency is powered by a class-D amplifier, while the high-frequency gets its power from a class-AB amplifier. The PD4 features a built-in DSP with 4 preset modes for speech, PA, sub and monitor sound settings. In sub mode the speaker can be used as a top in combination with a subwoofer. This series has been designed in a polypropylene construction both to handle the power and still lightweight enough for mobile use. The perfect speaker for any DJ or live-performer but also suitable for monitor use or club installation.
- 800W Bi-amplified 10" speaker
- 1" Compression driver

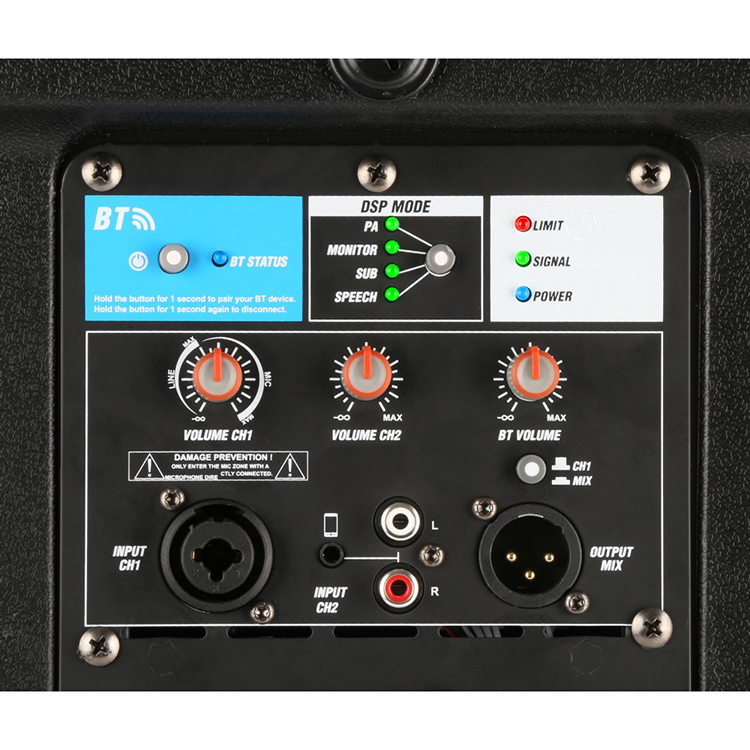

- Line and mic input
- Built-in 2-way active crossover
- 4 Preset EQ settings
- Efficient class-D amplifier
- BT-receiver for audio streaming

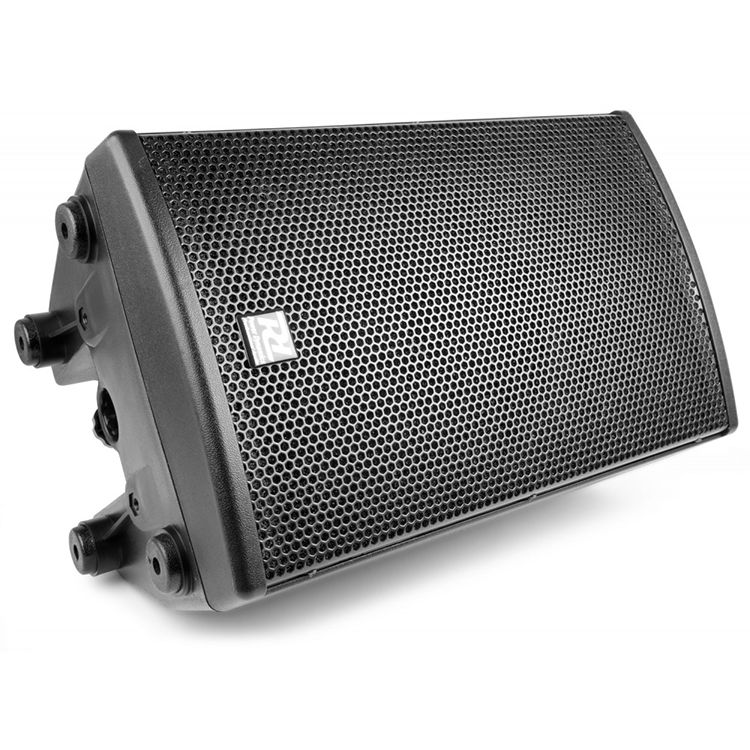

- Angled design for use as stage monitor
- 35mm socket for tripod or pole-mounting
