AR-5
Wireless Microphone system

Gallery:

Price: 1106.00 ₾

Call Us for Pricing

Details & Specifications:

Home / Audio Equipment / Microphones / AR Series Wireless System

Carrier Frequency Range	UHF 618-936 MHz
Oscillation	PLL synthesized
Harmonic radiation	<-63dBm
Bandwidth	32 MHz
Max. Deviation Range	+/- 45 KHz
Input Connector	4-pin mini-XLR Connector
RF Power Output	8mW
Battery	AA x 2
Current Consumption	85 mA, typical
Battery Current / Life	Approximately 16 hors
Dimension	95(H) x 65(W) x 25(D)
Weight	70g (w/o battery)

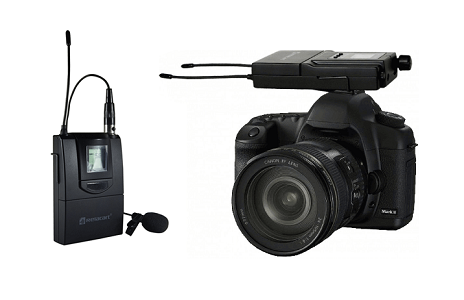

AR1 is the cardioid high sensitivity microphone designed for camera, the sound is clear, the unit directional cartridge can reduce the noise and improve the recording quality, linear switch for the musical instrument, little size is easy for concealment. Wireless receiver offer durable, ergonomic metal bodies and soft-touch controls. Carrier frequency range (UHF) 618 to 936MHz, battery current/life is 12 hours and current consumption is 185mA

- Cardioid high sensitivity microphone
- Designed for camera, sound is clear
- Directional cartridge can reduce the noise and improve the recording quality
- Linear switch for the musical instrument, little size is easy for concealment

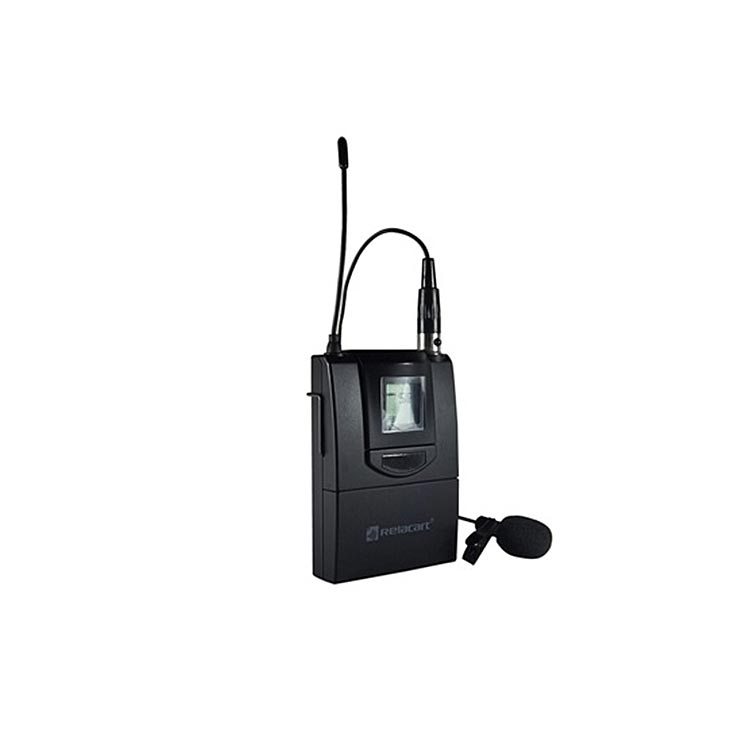

AR1 Body-pack Transmitter

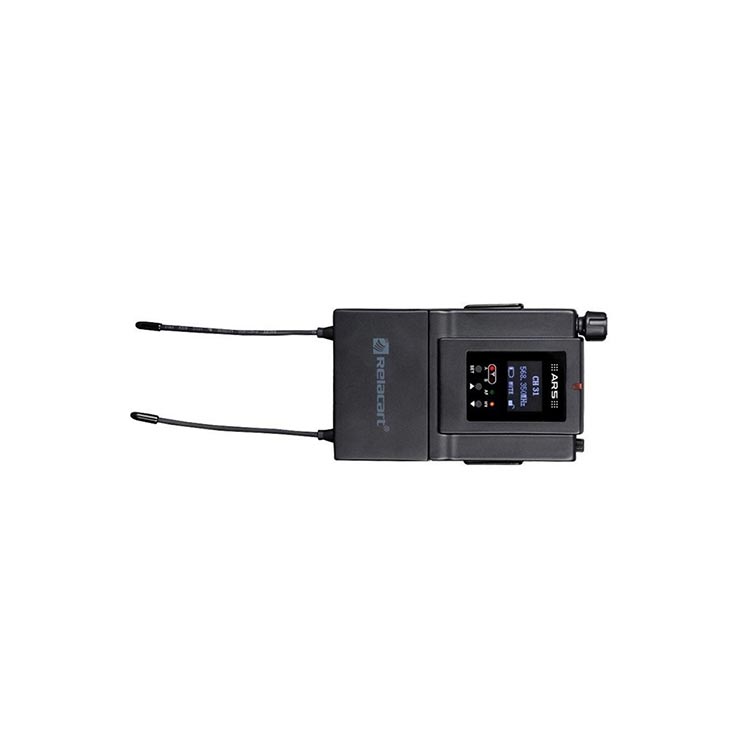

AR5 receiver

Channels	Single Channel
Frequency Stability	±0.005%, Phase Lock Loop frequency control
Carrier Frequency Range	UHF 618-936 MHz
Modulation Mode	FM
Operating Range	80M typical ( in open space)
Oscillation	PLL synthesized
Sensitivity	6dBμV, S/N>60dB at 25 deviation (mono)
Band Width	16MHz
Max. Deviation Range	±68KHz
S/N Ratio	>105 dB
T.H.D	<0.7 % (at 1kHz)
Frequency response	80 Hz - 16 kHz
Stereo Separation	>=45 dB (at 1kHz)
Battery : AA x 2	AA x 2
Battery Current/Life	12 hours (approximately)
Product Weight	0.11 kg
