Home / Audio Equipment / Sound Systems / LD Systems / MAUI 11 G2 W
Discount: -57.00 GEL
MAUI 11 G2 W
PORTABLE COLUMN PA SYSTEM WITH MIXER AND BLUETOOTH WHITE
PORTABLE COLUMN PA SYSTEM WITH MIXER AND BLUETOOTH WHITE
| Product number: | LDMAUI11G2W |
| Product type: | PA system |
| Type: | active |
| Colour: | white |
| Max. SPL (peak): | 124dB |
| Frequency response: | 50 - 20000Hz |
| Dispersion (H x V): | 120° x 20° |
| Overall height: | 2030mm |
| Weight: | 24,9kg |
| Woofer characteristics | |
| Low/mid driver dimensions: | 3 x 6.5" |
| Woofer size: | 3 x 165.1mm |
| Woofer magnet: | Ferrite |
| Woofer brand: | Custom-made |
| Woofer voice coil: | 1.5" |
| Woofer voice coil (mm): | 38.1mm |
| Cabinet construction: | vented |
| Cabinet construction: | 15 mm Plywood |
| Cabinet surface: | Texture Paint |
| Dimensions Subwoofer (W x H x D): | 285 x 650 x 373mm |
| Subwoofer weight: | 16,9kg |
| Mid/Hi System | |
| Midrange size: | 8 x 3" |
| Midrange size: | 8 x 76.2mm |
| Midrange magnet: | Ferrite |
| Midrange brand: | Custom-made |
| Midrange voice coil: | 1" |
| Midrange voice coil: | 25.4 |
| Horn: | Waveguide |
| Tweeter dimensions: | 1" |
| Tweeter dimensions (mm): | 25.4mm |
| Tweeter magnet: | Neodymium |
| Tweeter brand: | Custom-made |
| Mid/Hi system impedance: | 4Ohm(s) |
| Loudspeaker inputs: | 1 |
| Speaker input connections: | Custom-made multipin |
| Cabinet construction mid/high: | Closed |
| Mid/Hi system cabinet material: | aluminium |
| Mid/Hi system cabinet surface: | HD coating |
| Mid/Hi system width: | 96mm |
| Mid/Hi system height: | 620 / 730mm |
| Mid/Hi system depth: | 104mm |
| Mid/Hi system weight: | 5.4 / 2.6kg |
| Amplifier Module (integrated in Subwoofer) | |
| Amplifier: | Class D |
| Amplifier Output System (RMS): | 500W |
| Amplifier Output System (Peak): | 1000W |
| Protection circuits: | DC protection, thermal overload, short circuit, Multiband limiter |
| Cooling: | Convection |
| Operating Temperature: | 0 - 40°C |
| Humidity Range: | 10% to 80%, (non-condensing) |

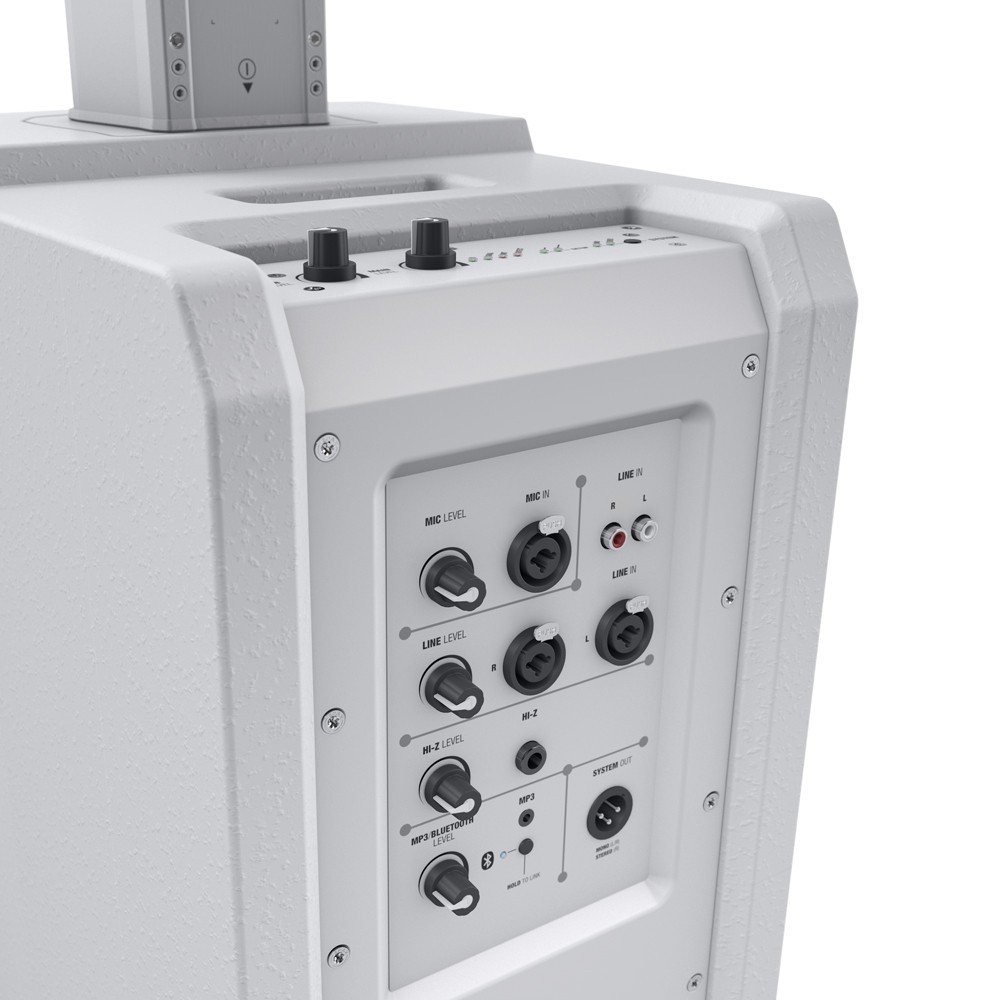

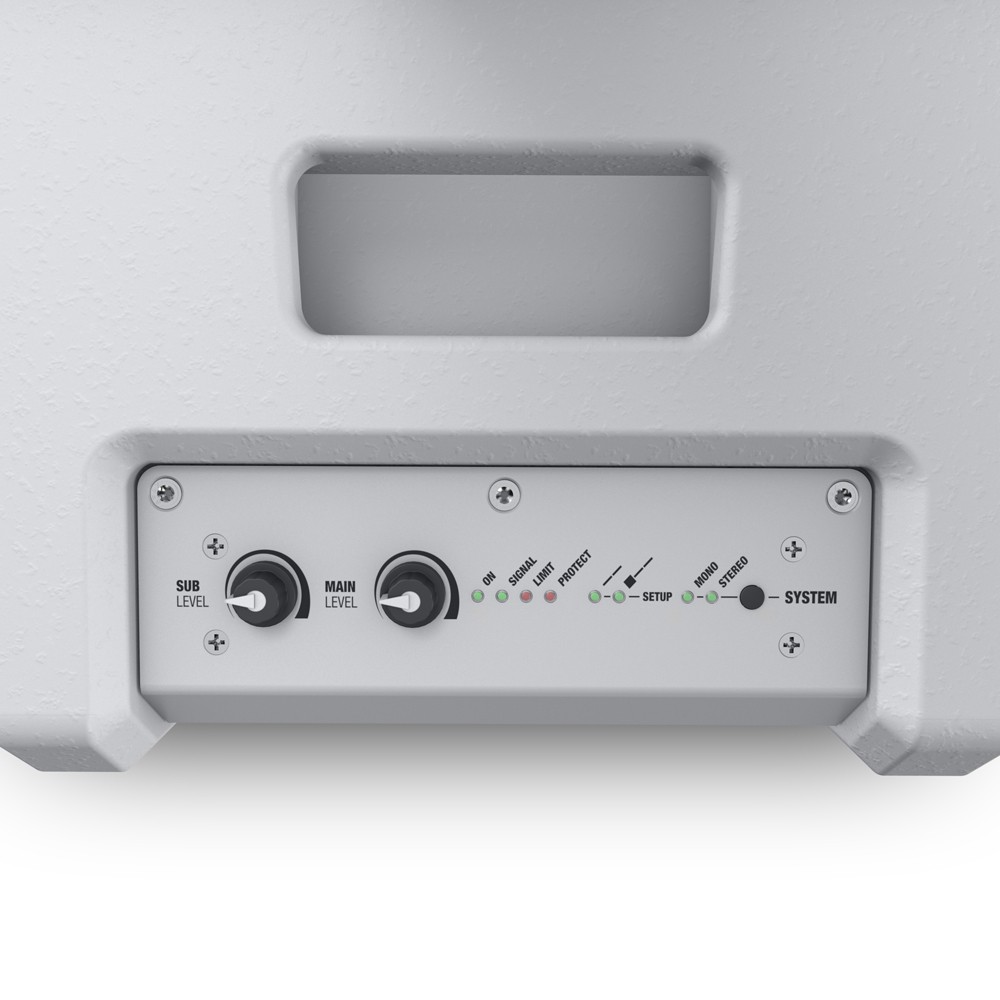

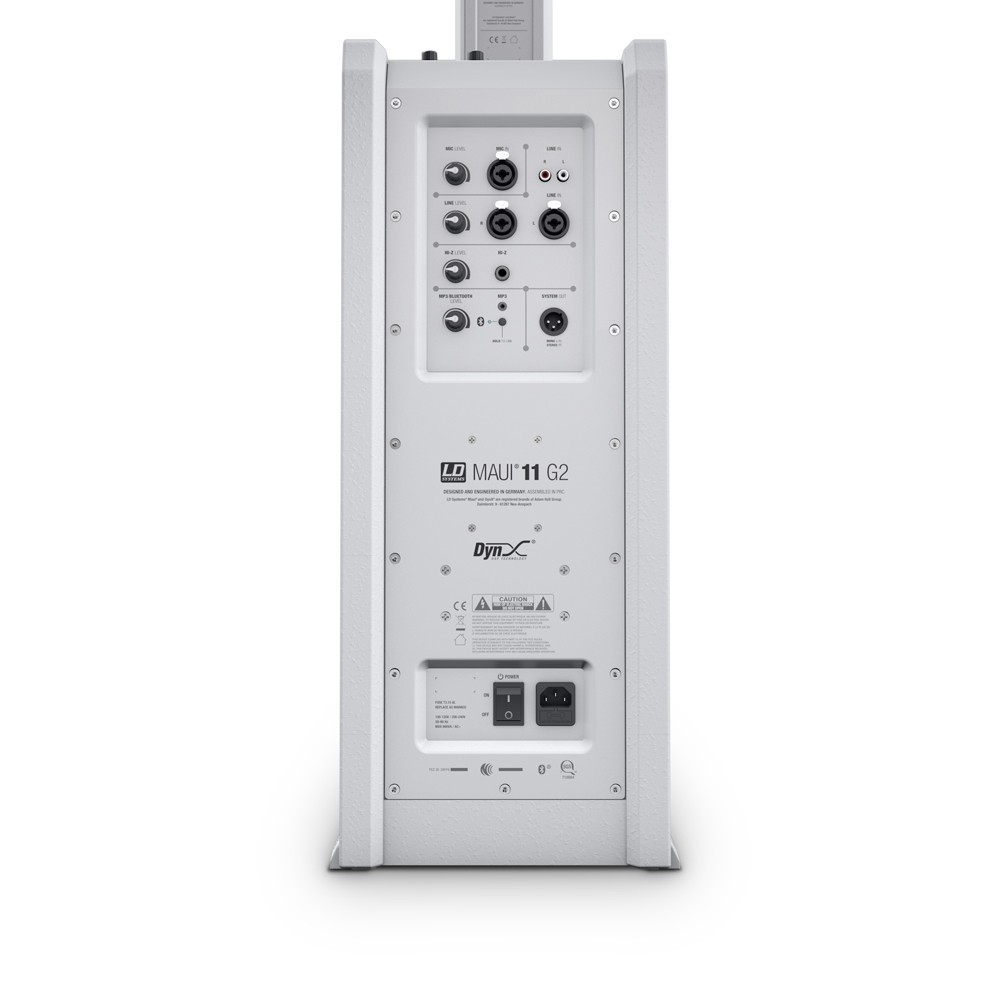

| Controls: | Mono/stereo switch, Main level, Sub level, Hi-Z Level, Line level, Power, Bluetooth switch, MP3/Bluetooth Level |
| Indicators: | On, Protect (protection circuit engaged), stereo, Setup, mono, Signal, Limit |
| Operating voltage: | 100 - 120 V / 50 - 60 Hz or 200 - 240 V / 50 - 60 Hz (automatic switching) |
| Power consumption Off / On / Max.: | 0 / 11 / 600W |

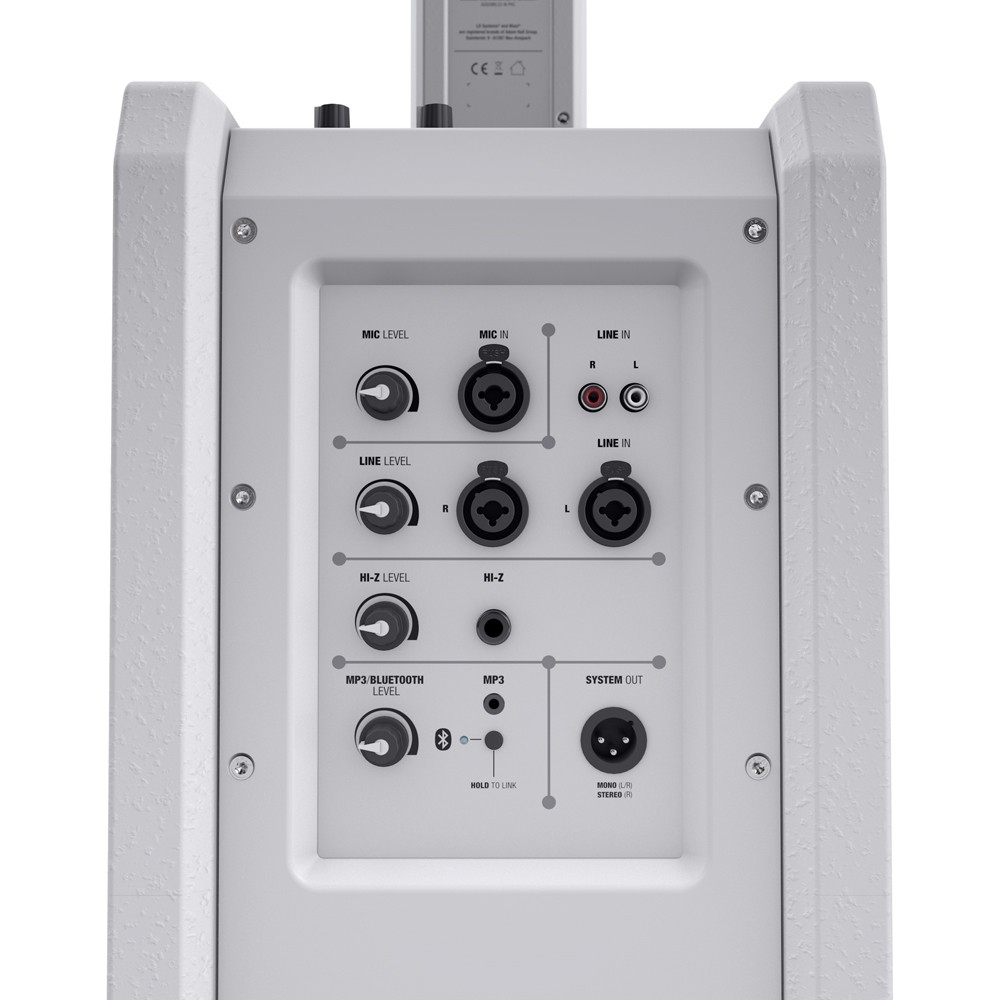

| Line inputs: | 2 x stereo |
| Line input connectors | RCA, 6.3 mm Jack, XLR |
| Line outputs: | 1 x direct out |
| Line output connectors: | XLR |
| Mic inputs: | 1, 6.3 mm Jack, XLR |
| MP3 inputs: | 1 |
| MP3 input connectors: | 3.5 mm jack |
| Hi-Z inputs: | 1 |
| Hi-Z input connectors: | 6.3 mm Jack |
| Speaker output connections: | Custom-made multipin |
MAUI 11 G2 W
PORTABLE COLUMN PA SYSTEM WITH MIXER AND BLUETOOTH WHITE

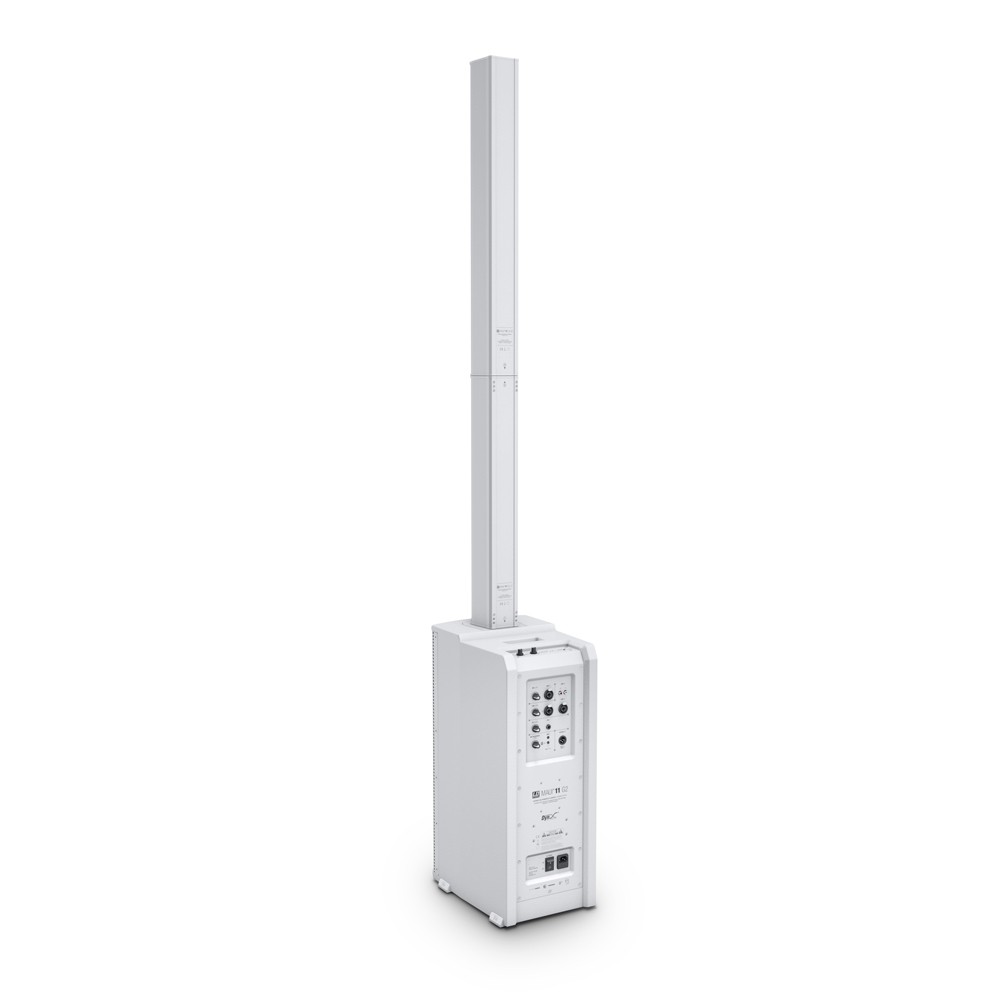

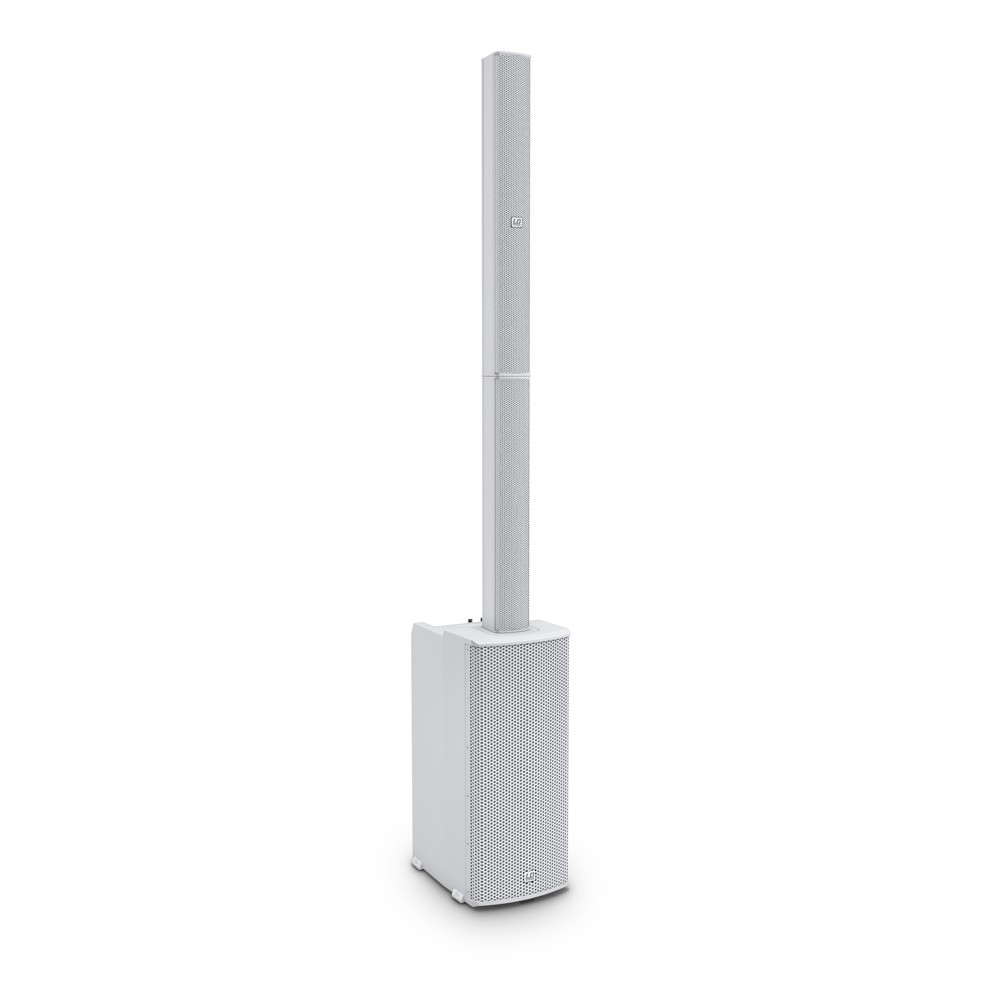

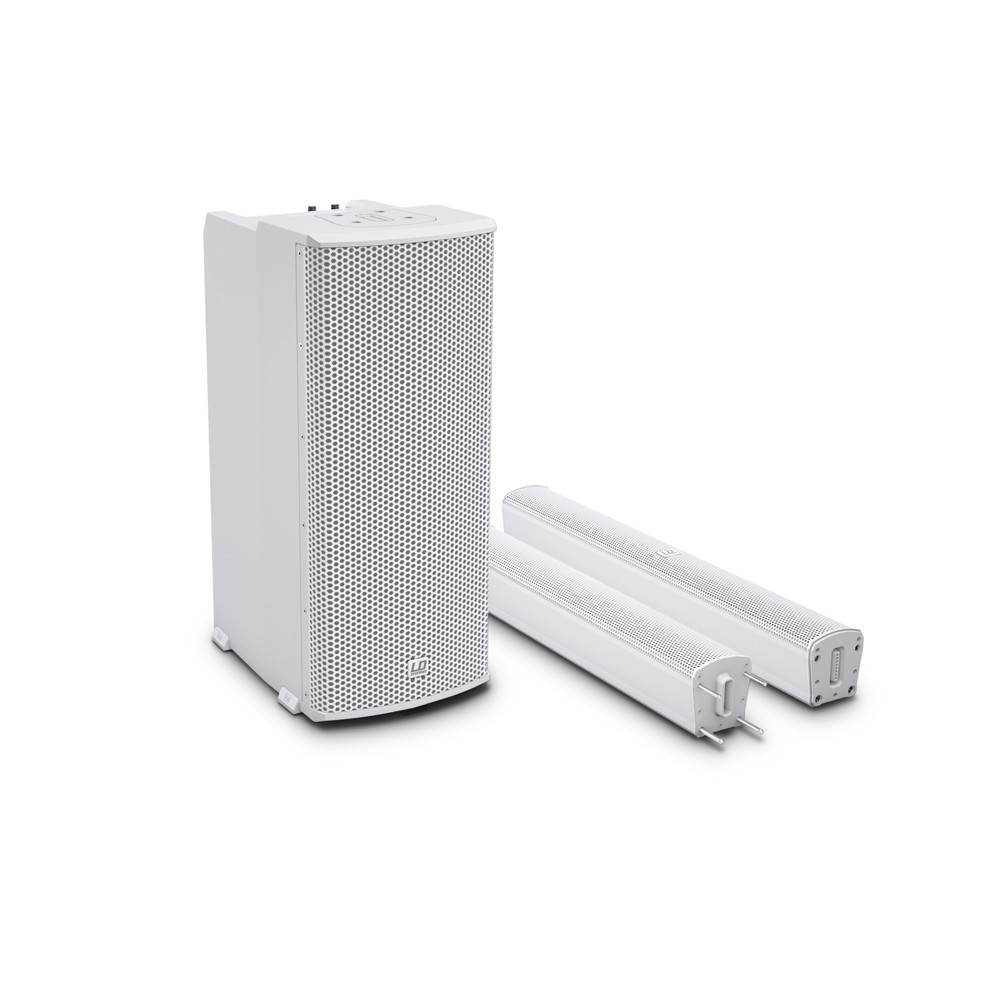

A complete sound system that you can carry together with your instrument: introducing the MAUI 11 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as a PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 11 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed after years of experience in the design of the column systems as a user-friendly solution for small to medium-sized gigs and fixed installations.

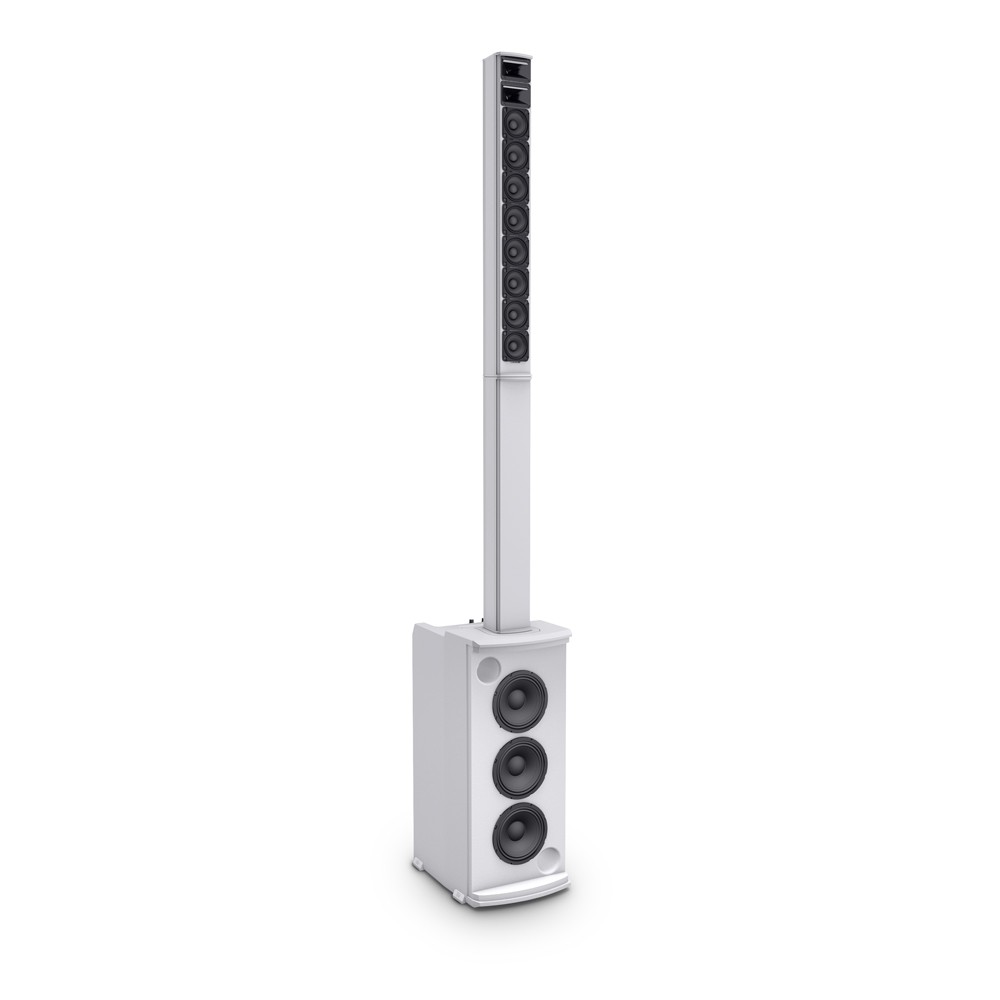

The MAUI 11 G2 is equipped with three 6.5" woofers, eight 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier boasting 1,000 watts of peak power and producing a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides top-class performance each time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way-crossover with run time correction.

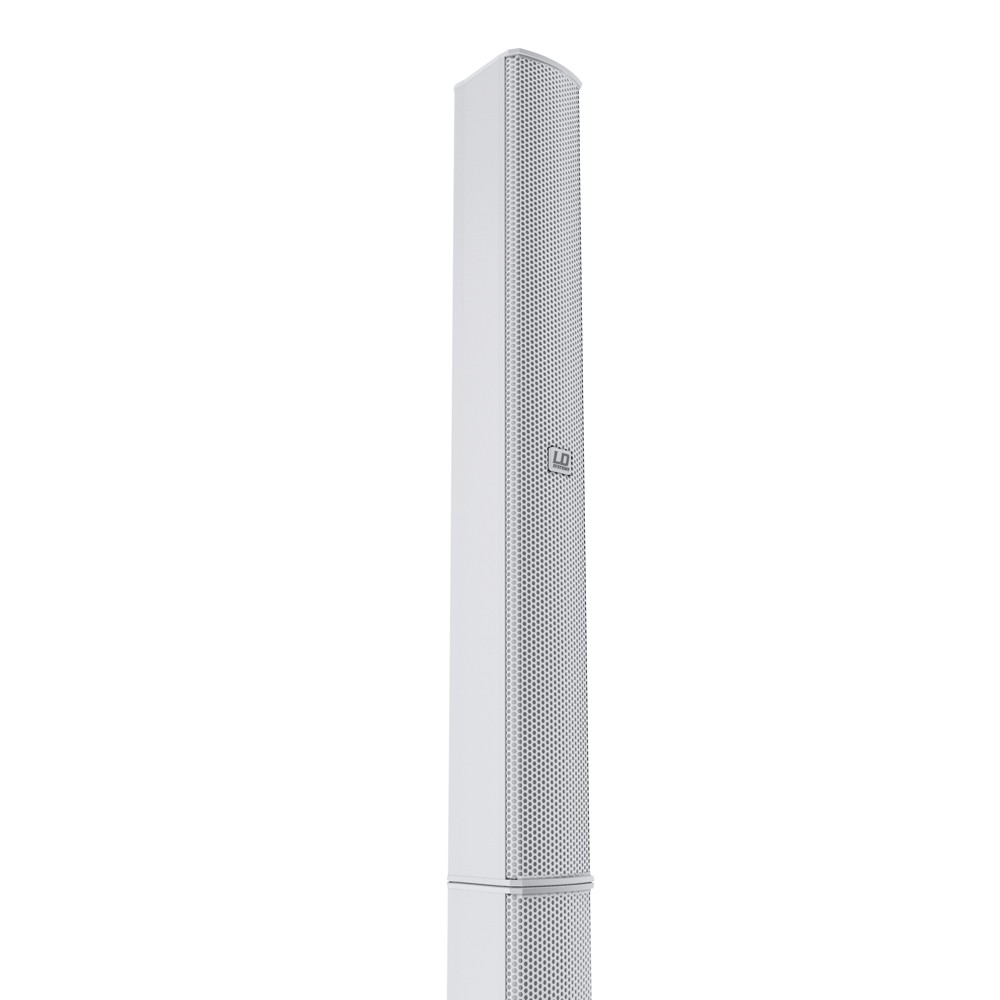

The design of the MAUI 11 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front.
With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer or DJ, you will be thrilled with the extraordinary sound and portability of the MAUI 11 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 11 G2 is a well thought out overall solution, down to the last details.
PORTABLE COLUMN PA SYSTEM WITH MIXER AND BLUETOOTH WHITE
A complete sound system that you can carry together with your instrument: introducing the MAUI 11 G2. The two column elements in the padded shoulder bag, the subwoofer in one hand and the guitar or keyboard in the other - and off you go! Setting up the complete system, which doubles as a PA and monitor system is just as easy thanks to the special multi-pin cable plugs. The compact and elegant MAUI 11 G2 offers an unbeatable sound quality and wide-ranging sound distribution. It was developed after years of experience in the design of the column systems as a user-friendly solution for small to medium-sized gigs and fixed installations.
The MAUI 11 G2 is equipped with three 6.5" woofers, eight 3" full-range speakers and two 1" neodymium HF drivers. They are driven by a light Class-D power amplifier boasting 1,000 watts of peak power and producing a grunty bass, balanced mids and precise and silky highs. The DynX® DSP technology from LD Systems provides top-class performance each time and the highest level of freedom from distortion. It includes a multiband limiter which protects against overloading, an EQ, a compressor and a 3-way-crossover with run time correction.
The design of the MAUI 11 G2 line array achieves a longer range, increased resistance to feedback and a wider space coverage, which makes separate monitor speakers superfluous. The wave guide of the tweeters has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves an homogeneous dispersion - Your audience hears you in the back row just as clearly as in the front.
With the integrated 4-channel mixer, system presets for mono or stereo configuration and Bluetooth® Audio Streaming, you have full control over the system. Whether you are a singer-songwriter, solo entertainer or DJ, you will be thrilled with the extraordinary sound and portability of the MAUI 11 G2. The column and the subwoofer can be set up separately: thus, the system is extremely flexible and is also an excellent choice for fixed installations. With a selection of clever transport accessories and special mounting hardware, the MAUI 11 G2 is a well thought out overall solution, down to the last details.
