TS108 Active Studio Subwoofer
Gallery:
 |
 |
 |
 |
 |
Details & Specifications:
Our range of Subwoofers follows our policy of using only high quality components. This has enabled us to bring the best possible products to the market place. We have paid the highest attention to properly extend the frequency range of our speakers and have put even more care into our subwoofer designs. Not only care, but also a lot of testing and abuse.
So you can rest assured that when you buy a TS (ThunderStorm) subwoofer from EVE Audio, you will be getting a first grade product that delivers adequate and precise control over the bass frequencies in your room, without any low-port noise distortion since all TS subwoofers have a passive radiator. Your system will sound as a whole, not just a sum of parts.
All subwoofers feature the powerful accurate and low distortion sound reproduction that is the hallmark of all EVE Audio studio monitors.
So you can rest assured that when you buy a TS (ThunderStorm) subwoofer from EVE Audio, you will be getting a first grade product that delivers adequate and precise control over the bass frequencies in your room, without any low-port noise distortion since all TS subwoofers have a passive radiator. Your system will sound as a whole, not just a sum of parts.
All subwoofers feature the powerful accurate and low distortion sound reproduction that is the hallmark of all EVE Audio studio monitors.

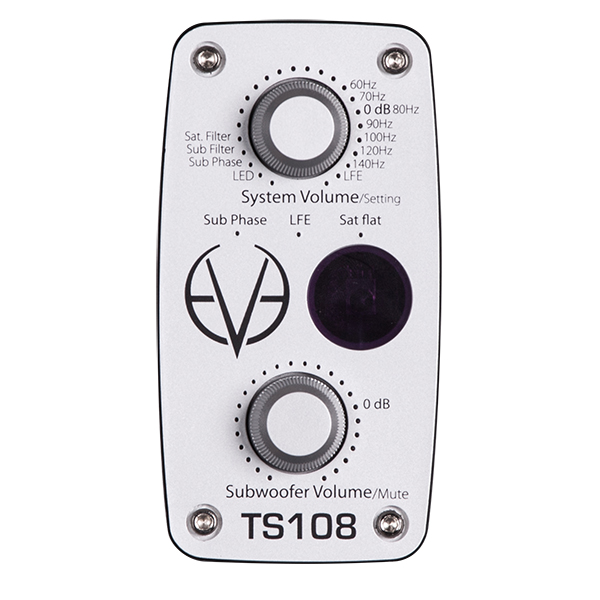

Every ThunderStorm subwoofer has detailed controls like switchable satellite filters (full range and 80Hz), phase switch controls (0°, 180°). and variable subwoofer filter frequencies (60....140Hz) to let you tailor and adjust your ThunderStorm to your specific room.

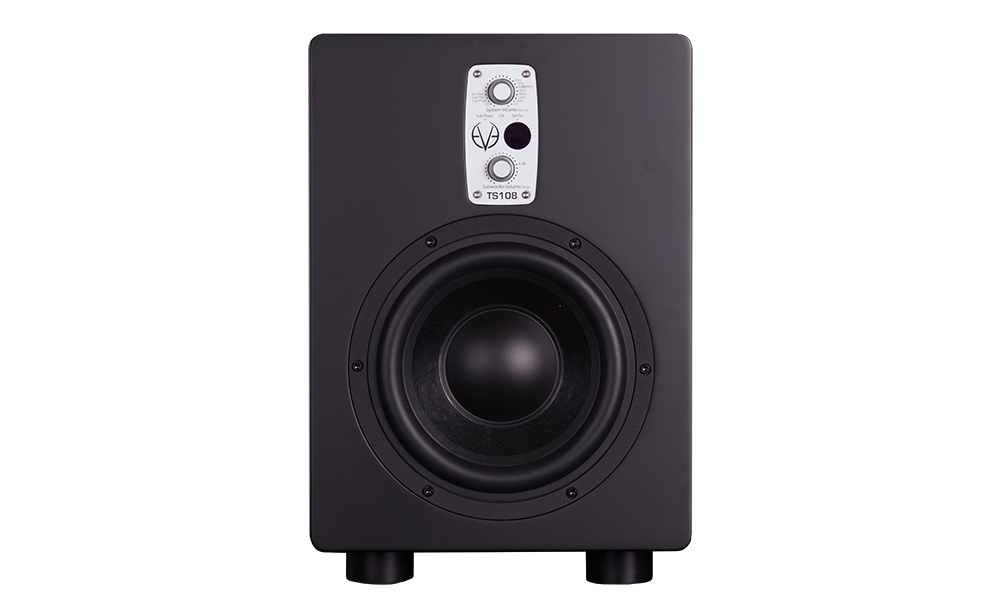

The TS108 model features a very efficient 150W PWM amplifier that drives a proprietary 8" woofer. This guarantees a frequency response of down to 29Hz (on the lower end), up to 300Hz, for a maximum output power of 105 dB (SPL @ 1m).
One thing worthy of mentioning is that the DSP section, which uses a high resolution BurrBrown converter, only affects the bass driver operation. The signal path to the satellite speakers is kept purely analog, with no A/D/A conversions whatsoever. That's why the "Pure Satellite" function, when activated, completely bypasses the subwoofer and DSP filter section, and will only allow you to adjust your satellite's volume.

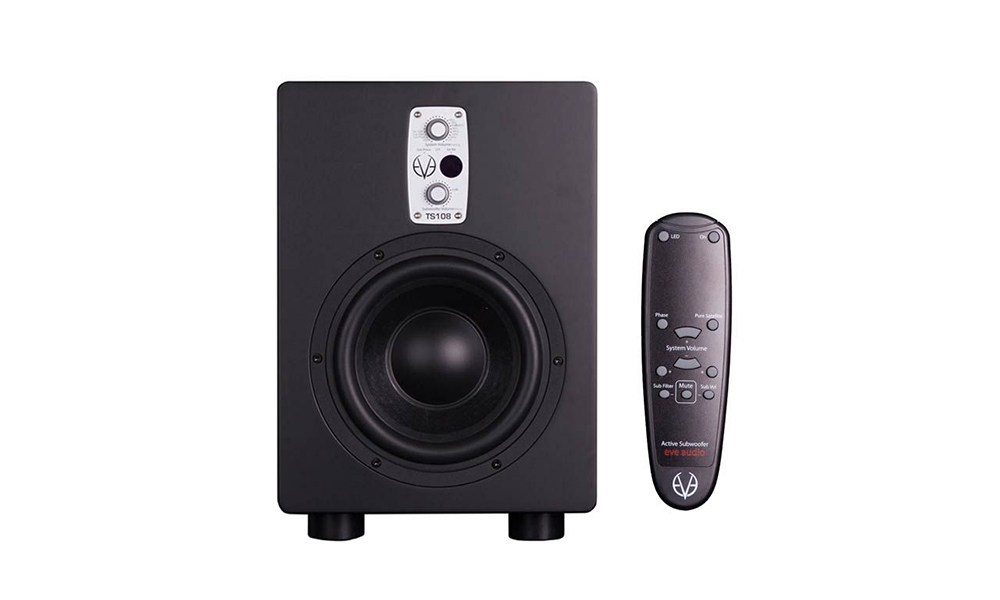

The included remote control will let you adjust not only the subwoofer's volume but also the complete stereo system's volume while sitting comfortably in your sweet spot.
All in all, the ThunderStorm subwoofers will make any system sound better and more complete.

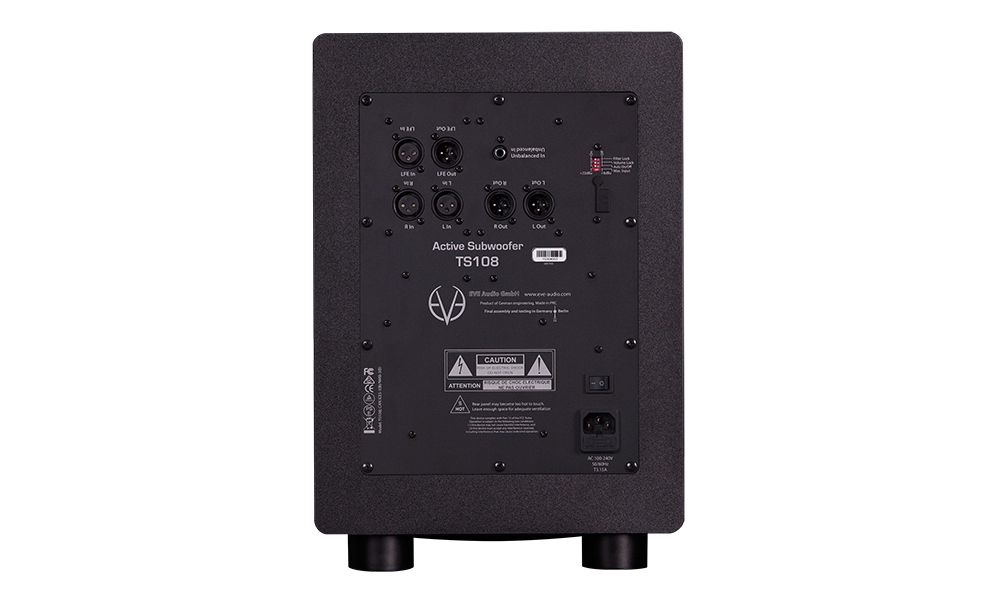

As with every other EVE Audio subwoofer, you get balanced XLR In- and Outputs (Stereo In and Out, LFE In, LFE/Sub Out) for greater convenience. In addition, TS108 features an unbalanced input for connecting SC203, too.
The TS108 model features a very efficient 150W PWM amplifier that drives a proprietary 8" woofer. This guarantees a frequency response of down to 29Hz (on the lower end), up to 300Hz, for a maximum output power of 105 dB (SPL @ 1m).
One thing worthy of mentioning is that the DSP section, which uses a high resolution BurrBrown converter, only affects the bass driver operation. The signal path to the satellite speakers is kept purely analog, with no A/D/A conversions whatsoever. That's why the "Pure Satellite" function, when activated, completely bypasses the subwoofer and DSP filter section, and will only allow you to adjust your satellite's volume.
The included remote control will let you adjust not only the subwoofer's volume but also the complete stereo system's volume while sitting comfortably in your sweet spot.
All in all, the ThunderStorm subwoofers will make any system sound better and more complete.
As with every other EVE Audio subwoofer, you get balanced XLR In- and Outputs (Stereo In and Out, LFE In, LFE/Sub Out) for greater convenience. In addition, TS108 features an unbalanced input for connecting SC203, too.
Tech Talk
Passive Radiator

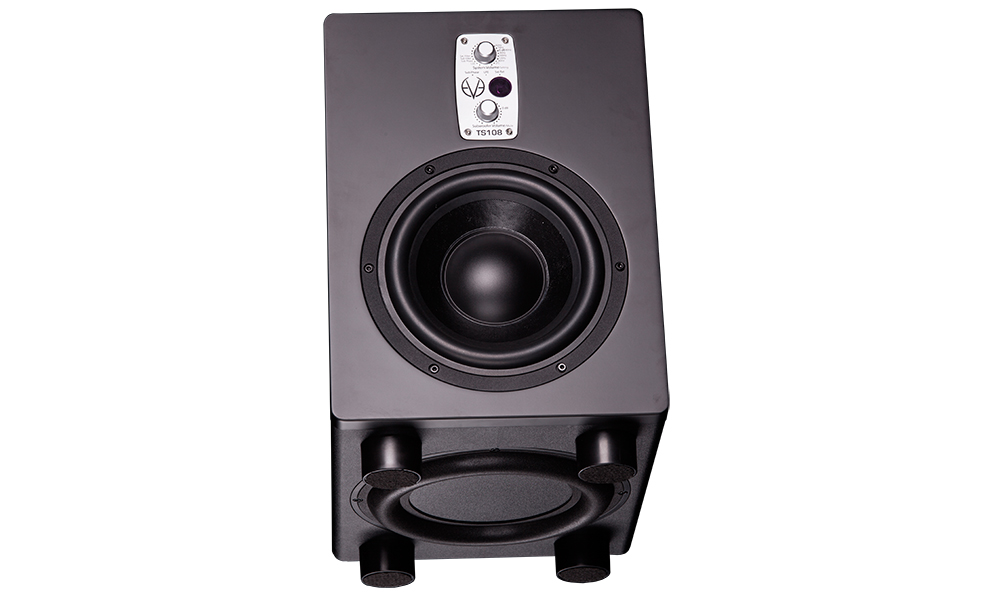

The particularity of our extremely powerful and accurate subwoofer resides in the passive radiator used that replaces the common bass reflex tube. With this design all audible noise due to air turbulences disappear completely.
Unwanted disturbing pipe resonances (at lambda/2 and multiples) are eliminated, which are unavoidable when applying the principle of a two-sided pipe opening (bass reflex port). The suspension of the passive radiator has a restoring force underneath its tuning frequency and reduces inaudible excursions in the subsonic range. This in turn results in reduced intermodulation distortion in the working range.
The passive radiator allows a particularly low tuning or lower cut-off frequency in a very compact cabinet.
Unwanted disturbing pipe resonances (at lambda/2 and multiples) are eliminated, which are unavoidable when applying the principle of a two-sided pipe opening (bass reflex port). The suspension of the passive radiator has a restoring force underneath its tuning frequency and reduces inaudible excursions in the subsonic range. This in turn results in reduced intermodulation distortion in the working range.
The passive radiator allows a particularly low tuning or lower cut-off frequency in a very compact cabinet.
TS108
Active Studio Subwoofer
Active Studio Subwoofer
TS108
Active Studio Subwoofer
Active Studio Subwoofer
| Product: | TS108 |
| Description: | Subwoofer |
| Dimensions (WxHxD) [mm]: | 280 x 415 x 365 |
| Free-field frequency range (-3dB): | 29Hz - 300Hz |
| Woofer: | 195mm/8" |
| Maximum SPL @ 1m: | 105dB |
| Number of amplifiers: | 1 |
| Output power (woofers): | 150W |
| Protection limiter: | yes |
| Settings | |
| Volume: | -inf. - +6dB |
| Input level dip switch: | +7dBu/+22dBu |
| Phase inversion: | 0°/180° |
| Switchable Satellite filter: | flat/80Hz |
| Variable Subwoofer filter: | 60Hz-140Hz + LFE |
| Remote control: | Sys. & Sub. Vol. |
| LED brightness setting: | yes |
| Level-lock dip switch: | yes |
| Filter-lock dip switch: | yes |
| Connectors | |
| RCA in (impedance): | yes (10k) |
| XLR in left (impedance): | yes (10k) |
| XLR in right (impedance): | yes (10k) |
| XLR in LFE (impedance): | yes (10k) |
| XLR out satellite left (impedance): | yes (10k) |
| XLR out satellite right (impedance): | yes (10k) |
| XLR out (LFE) (impedance): | yes (10k) |
| Power consumption | |
| Standby: | < 1W |
| Full output: | 120VA |
| Misc. | |
| Weight kg: | 11.4 |
